Zhejiang Weilishi Machine Co., Ltd.
Intelligent high-speed automatic bandsaw machines — from auto-series cutting to heavy-duty gantry structures.
ChinaBandsaw MachinesNational High-Tech Enterprise
Overview
Sawing, made intelligent.
Zhejiang Weilishi Machine Co., Ltd. builds intelligent high-speed automatic bandsaw machines for a wide range of cutting duties.

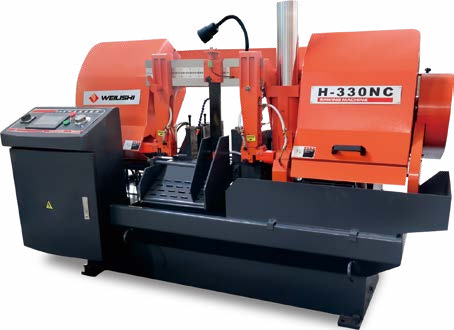

The auto-series H-330NC delivers fast, PLC-controlled cutting for standard stock, while the gantry-structure H1310 handles heavy-duty mould-steel cutting up to 1300 × 1000 mm.
As a recognised national high-tech enterprise, Weilishi pairs robust mechanical design with hydraulic clamping and tensioning for consistent, repeatable cuts.
Specifications
Two machines, every duty.
From standard auto-series cutting to heavy-duty gantry-structure machines for mould steel.
| Max. Process (Standard) | 15–330 mm |
| Bundle Cutting | 300 × 500 mm |
| Blade Speed | 23 / 40 / 56 / 74 / 92 m/min |
| Blade Size | 4115 × 34 × 1.1 mm |
| Feed Mode | Auto (PLC) |
| One-Time Feeding Length | 400 mm |
| Main Motor Output | 4 kW |
| Clamping / Tension | Hydraulic / Manual |
| Dimensions (L×W×H) | 2080 × 1940 × 1500 mm |
| Weight | 1600 kg |
| Max. Process (Standard) | 550–1000 mm |
| Bundle Cutting | 1300 × 1000 mm |
| Blade Speed | 10–60 m/min (freq. conversion) |
| Blade Size | 10280 × 67 × 1.6 mm |
| Feed Mode | Hydraulic (worktable) |
| Main Motor Output | 15 kW |
| Clamping / Tension | Hydraulic / Hydraulic |
| Dimensions (L×W×H) | 4700 × 2300 × 3000 mm |
| Weight | 15000 kg |
| Chip Conveyor | Hydraulic / adjustable spiral |
Gallery
The Weilishi range
Interested in Weilishi?
Request pricing & specifications.
Our engineers will help you configure the right Weilishi solution for your application.
